Planar tweeter in a waveguide
Amberd carries the Top Line treble approach into a smaller cabinet: a planar tweeter shaped by a waveguide, so the speaker can hold its image outside a narrow sweet spot.
- Planar treble
- Integrated waveguide
- Stable image
Bigger
than it looks.
A made-to-order two-way standmount for small-to-mid rooms — with bass reach, image scale, and material presence that feel out of proportion to its compact footprint.
Format Passive two-way standmount
Treble Waveguided planar
Bass PURIFI 4 in extended
Architecture ARMAT X hybrid baffle
Why it exists
A compact object with
serious reach.
Amberd is not a simplified version of a larger speaker. It is a compact Top Line design with its own acoustic logic: planar treble, controlled radiation, an extended PURIFI woofer, and an enclosure built from ARMAT X.
The target is a loudspeaker that can work near-field or far-field, look fresh in the room, and reach into the bass with a scale that feels improbable for its size.
Baffle and crossover
The cabinet works
beyond its size.
The crossover is not treated as hidden background electronics. Premium parts are potted into the ARMAT X top section, directly behind the tweeter — and that mass also acts as an acoustic diffuser for the tweeter's back-wave.
The hybrid baffle idea, scaled down to a compact enclosure without losing the part of the system that does the work.
Technical notes
The compact form is
doing real work.
Compact bass with real reach
A PURIFI extended woofer gives Amberd unusual bass authority for its scale. The target is clean extension to 38 Hz before room gain — not the soft warmth that often passes for small-speaker bass.
- PURIFI extended woofer
- 38 Hz target
- Compact scale
Hybrid baffle with rear diffusion
The baffle follows the hybrid logic of the larger speakers, then adds a rear diffusion element behind the tweeter. That upper structure is part of the enclosure, crossover packaging, and acoustic behavior.
- Hybrid baffle
- Rear diffusion
- Integrated top section
Crossover as structure
The crossover is positioned as a physical part of Amberd, not a hidden afterthought. Premium parts are potted into the ARMAT X top section behind the tweeter, where the mass also contributes to the rear geometry.
- Premium parts
- Potted top section
- Behind the tweeter
Single-wire simplicity
Amberd is a passive single-wire loudspeaker. It is meant to stay straightforward in system setup while retaining the material and acoustic seriousness of the Top Line family.
- Passive
- Single-wire
- Made to order

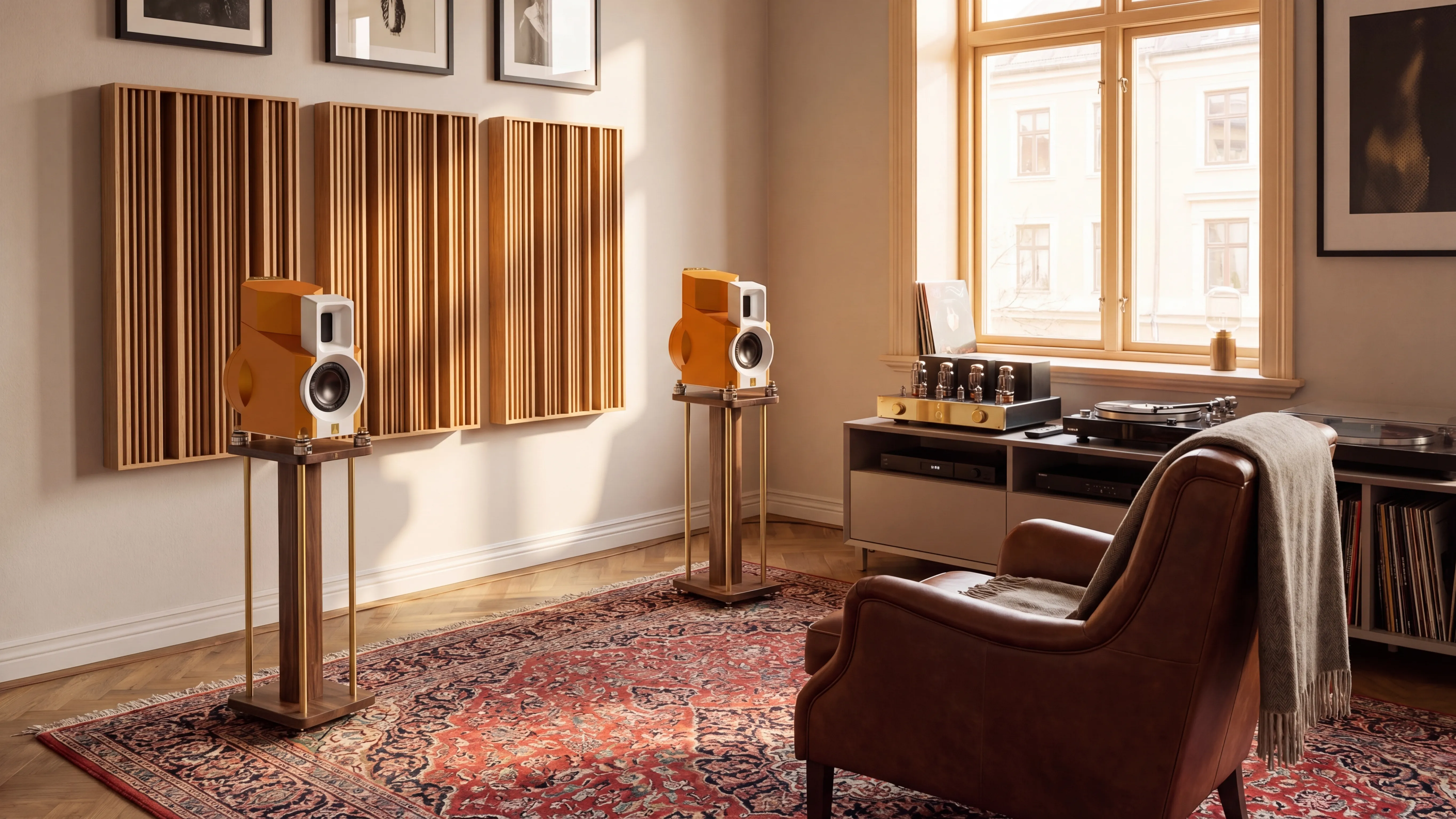

Room role
Near-field focus.
Room-scale weight.
Amberd is meant for small-to-mid rooms where the loudspeaker must work visually as well as sonically. It can sit close enough for intimate listening, but is intended to hold together at a normal room distance.
Assembly
Dense architecture,
compact form.
Driver, waveguide, ARMAT X shell, top-section crossover, diffuser geometry, and binding-post layout all occupy a small, deliberate volume.
Scale
Bass reach
without the box.
The target is clean extension toward 38 Hz before room gain — low-frequency ambition that reads as texture and proportion, not as a larger box. Full measured curves ship with each pair.
Specifications
Scale
without bulk.
A passive, single-wire compact monitor with Top Line materials, serious bass ambition, and a distinctive acoustic structure behind the tweeter.
Start an inquiry- Type
- Made-to-order compact Top Line standmount
- Driver count
- 2 per speaker
- Tweeter
- Waveguided planar magnetic tweeter
- Woofer platform
- PURIFI 4-inch extended driver
- Bass extension
- Down to 38 Hz, lower in-room
- Baffle
- Hybrid baffle architecture
- Crossover
- Premium network potted into ARMAT X top section
- Diffusion
- Rear diffuser for tweeter back-wave
- Enclosure
- ARMAT X
- System wiring
- Passive, single-wire
- Room target
- Small to mid rooms; near to far field
- Price
- $8,000 / pair
